Swimming Pool Controls -Non Digital

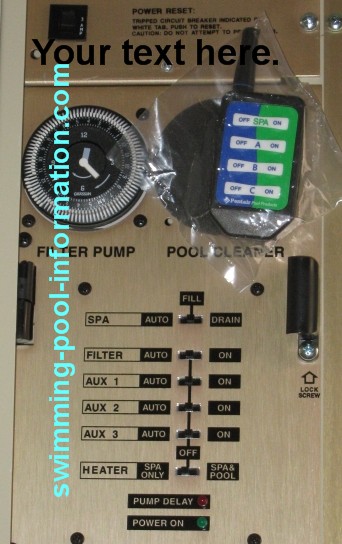

The photo above is a typical non digital swimming pool controls system-in this case,a Chardonnay. These type of pool controls send signals through the existing home wiring using X-10 type modules. Chardonnay uses 115 volt X-10 modules because they are less expensive than 220 volt X-10 modules,then sends the "on" signal to a high voltage relay that can handle 220 volts and high pool pump amps. There is some wisdom in doing this to make replacement modules cheaper and easier to find at a local hardware store,but personally,I like having just one high amp module and no extra relay to keep things simple.

The advantage of a system like this is the lower cost-1/3 to 1/2 the price of a digital system. However,some performance will be traded....for instance:

1)Cannot use the pool controls to power/control a salt chlorine generator.

2)No automatic "cool down" feature for the heater

3)Cannot use the pool controls to use temperature sensors to turn valves for most efficient use of solar heating

4)Cannot control temperature of heaters remotely

5)Cannot use valves independently to drain spa or have all flow go to spa to create waterfall effect is spa is raised higher than pool.

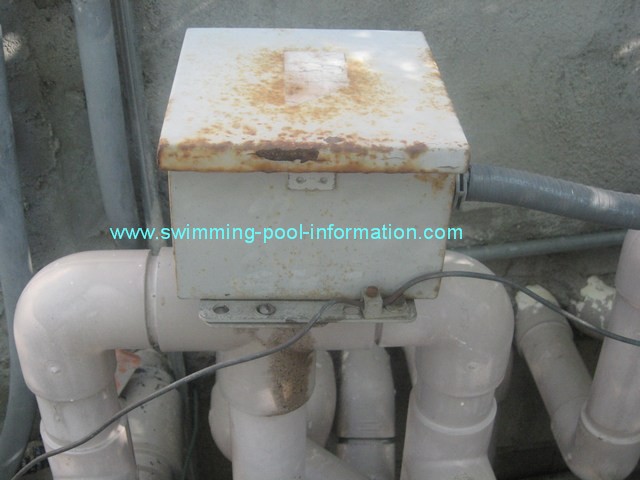

Below is a photo of a Chardonnay valve actuator



So if you do not need all the features of a digital system and/or you are on a budget,these type of relay systems may be for you. They can also easily be custom built for your needs.
