Choosing The Right Swimming Pool Pump

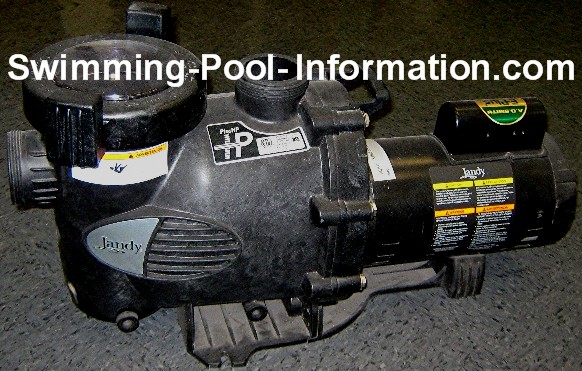

I like the 1/2 HP pump below for pools with 1.5" plumbing and less because it has a high flow rate,unions,motor with easily accessible shaft,and a carrying handle. Jandy PHPF.50

The most important thing about choosing a swimming pool pump is NOT to pay too much attention to the HP(Horsepower rating)...here are some examples:

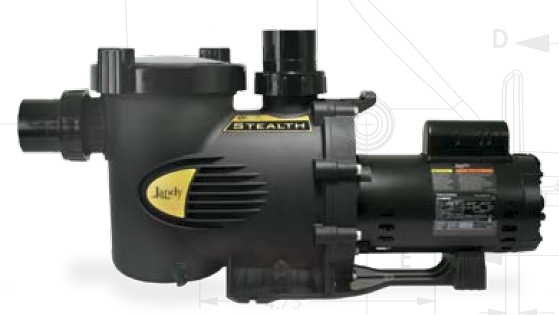

This 1 HP swimming pump shown below pumps almost 100 GPM(gallons per minute) at 50 feet of total dynamic head(a measurement of friction the pump must overcome due to plumbing restrictions,pumping through the filter,heater,etc.) The swimming pool pump shown below is a Jandy Stealth Pump.

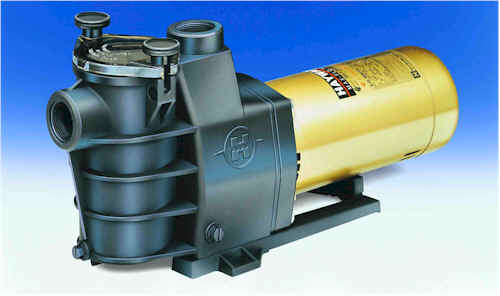

Now this 1 HP pump shown below will only pump 38 GPM at the same total dynamic head as the pump above! Its one of the Hayward pool pumps brand line.

So whats the difference?

1)The motor.The pump on top has a motor with a SF(service factor) of 1.65.You multiply the service factor times the HP(Horsepower)to get the rated HP of motor.1 x 1.65=1.65 actual horsepower.The lower pump has a SF of only 1

Also VERY important:the impeller on pump is matched to the motor specifications,so changing the motor HP or SF will not make a difference as far as volume of water pumped because the impeller still turns at the same speed.

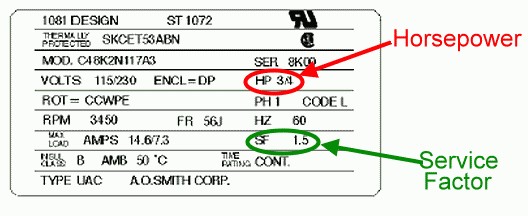

On the diagram above, this 3/4 HP motor has a service factor of 1.5 - meaning its true horsepower rating is a little over 1 horsepower.

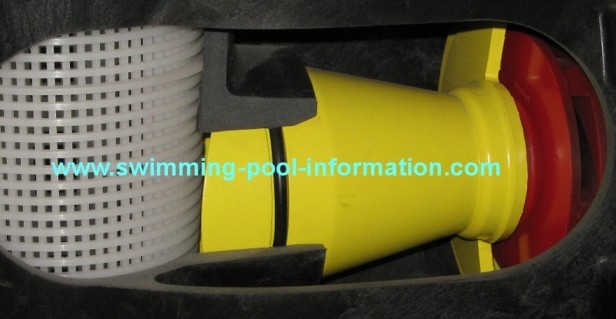

2)The design. The pump on top has a newer,much more efficient hydraulic design. The photo below shows the Jandy internal design-the basket is at left,the impeller is at right (red). The yellow throat section provides a gradual reduction in size from the basket to the impeller face....the Hayward pump also has a similar throat section but it is much shorter and not as hydraulically efficient.

3)The pump inlet/outlet openings. Although not as important as motor or design,the top pump has 2" fittings while the lower is 1 1/2"

As a general rule,when comparing two pumps of the same model,the pump with the higher horsepower is more efficient (more G.P.M. per amp of energy) BUT that does NOT take into consideration things such as plumbing restrictions (pumping water at a higher rate through plumbing/equipment restrictions can create more friction leading to loss in efficiency)...also,you may want to go to a lower horsepower if you have older wiring(or thin wiring) to reduce the amp load on wiring.(0n the calculations/formulas page there is a formula for checking your pumps' energy cost with link to a energy use calculator)

So the MOST important thing to pay attention to when choosing a pump is the pump's performance curve and the amp rating(amount of electricity used) The amp rating is usually expressed as a dual number(5.6/11.2) The lower number is for 230 voltage,the higher number 115 voltage. If there is only one value for amp rating,its a 230 only voltage motor. This information can be found online at most manufacturers websites.

When viewing the pump's performance curve,a good rule of thumb is an average pool has around 50 feet of dynamic head. There are ways to check this on your pool,but I will get into that on a later section on plumbing and hydraulics.

So you just pick the pump that has the highest performance for the lowest amps? Not always-in older pools with 1 1/2" or 1 1/4" copper plumbing,you can actually strip the copper from inside the pipe due to friction from water velocity!

Usually,if you have 1 1/2" or smaller plumbing,and you are installing a modern,high efficiency,fully rated pump,(meaning high service factor) 1/2 HP is usually more than adequate. There may be exceptions to this - for example your pump is unusually far away,then a 3/4 HP may be needed.

On the other hand,if you have 2" or larger plumbing and/or a spa or waterfall you may want to consider a 2-speed or multi speed pump as shown in link below:

Go from swimming pool pump to multispeed pump page

PoolSupplyWorld.com

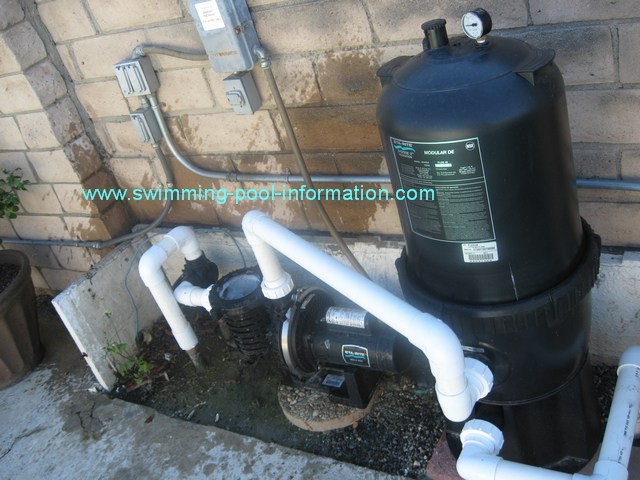

Below is a 1/2 HP swimming pool pump I installed with a cartridge D.E. filter. The old swimming pool pump was I believe a 1 or 1.5 HP bronze pump. This new swimming pool pump and filter was a great improvement in flow and much less noise than the old system. Although I used 2" plumbing,you can see the pipe drops to 1 1/2" before it goes into ground. The return size was even smaller, 1 1/4" plumbing-I dared not go higher than a 1/2 HP pump.

On the other hand,if you have a pool with 2.5" or 3 " plumbing a higher horsepower pump running for less time is the most efficient way to go (Pentair Whispeflo XF shown below 1/2 HP pump). This pump is new and not tried and tested,but its an improvement on an already favored pump,the original whisperflo and will probably come to dominate the market in its class and also a multi-speed version is on the way.
